We use only premium-grade aluminum, rigorously tested to meet the highest standards. Our products are built to last, offering exceptional strength and flawless finishes, ensuring reliability even in the most demanding applications.

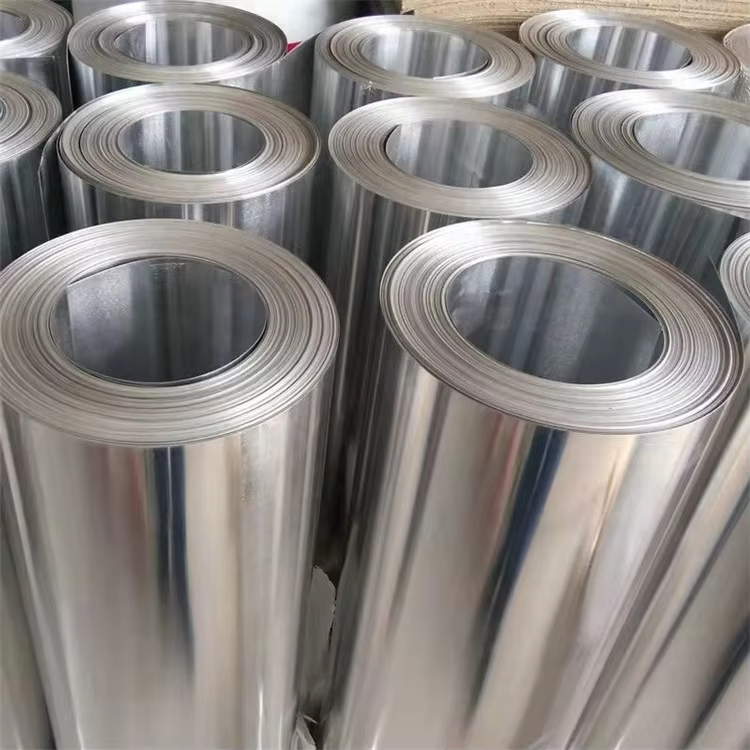

6061 Aluminum Coil
6061 aluminum coil is an aluminum alloy with magnesium and silicon as the main alloying elements, belonging to the Al Mg Si series alloy. This material is produced through heat treatment and pre stretching process, and has good processing performance, weldability, electroplating performance, and corrosion resistance.
Aluminium 6061Coils Specificaton
Width (mm) | 100 – 2800 |
Thickness (mm) | 0.2 – 300 |
Length | As Required |
Tempered State | O/T4/T6/T651 |
Production | Hot/Cold Rolled |
Chemical Composition of The 6061 Aluminium Coil
Fe | Cu | Mn+Cr | Mg | Zn | Ti | Others-Each | Others Total | Al Min | |
6061 | 0.40 | 0.10 | 0.10-0.6 | 2.6-3.6 | 0.20 | – | 0.05 | 0.15 | Remainder |
Mechanical Properties of Aluminum 6061Coils
Tensile strength: ≥ 260 MPa
Tensile modulus of elasticity: 68.3GPa
Compressive modulus of elasticity: 69.7GPa
Key Features of 6061Aluminum Coils
Good Processability: 6061 aluminum coil has excellent thermoplasticity, making it easy to process into various shapes and sizes.
Excellent Weldability: It can be welded using various methods, including MIG and TIG, offering reliable performance in structural applications.
Good Corrosion Resistance: It has excellent resistance to atmospheric and seawater corrosion.
Good Machinability: It can be easily machined, polished, and colored, allowing for customization in various applications.
Good Anodizing Effect: The surface of 6061 aluminum coil is smooth and can be easily anodized and colored, resulting in a beautiful and durable finish.
Applications of 6061 Aluminum Coil
◆ Construction of aircraft structures, such as wings and fuselages, is more common in homebuilt aircraft than commercial or military aircraft. 2024 alloy is somewhat stronger, but 6061 is more easily worked and remains resistant to corrosion even when the surface is abraded, which is not the case for 2024, which is usually used with a thin Alclad coating for corrosion resistance.◆ Yacht construction, including small utility boats.
◆ Automotive parts, such as the chassis of the Audi A8.
◆ Some tactical flashlights.
◆ Aluminium cans for the packaging of food and beverages.
Advantages of 6061Aluminum Coil
Cost-Effective: Offers durability and strength, minimizing the need for frequent replacements.
Environmentally Friendly: Aluminum is recyclable, making 6061 a sustainable choice for manufacturers.
Lightweight: Reduces shipping and handling costs due to its lower weight compared to steel or other metals.
Easy Workability: Can be easily machined, welded, and bent, allowing for customization in various applications.
The Product Specification
| Item | Value |
|---|---|
| Alloy | 6061 Aluminum Coil |
| Temper | O, T4, T6, H14 |
| Thickness | 1–6mm |
| Width | 100–2000 mm |
| Application |
Aerospace structures and components
Automotive parts and chassis Marine equipment and shipbuilding Construction and architectural applications Pressure vessels and storage tanks Pipes and tubing Industrial machinery Signage and billboards Electronic enclosures |
Why Choose Our 6061 Aluminum Coil?
From aluminum sheets, coils, foils to circles, Xuntai offers a broad product range to meet various industry needs. With flexible customization options, we provide perfect solutions tailored to your exact specifications.
Our cutting-edge production technology ensures precision, uniformity, and high mechanical performance in every product. With Xuntai, you’re guaranteed consistent quality that exceeds industry standards.
With a reputation for fast delivery and reliable service, Xuntai is trusted by clients worldwide. Our commitment to on-time delivery and consistent quality makes us the supplier you can rely on for long-term partnerships.
